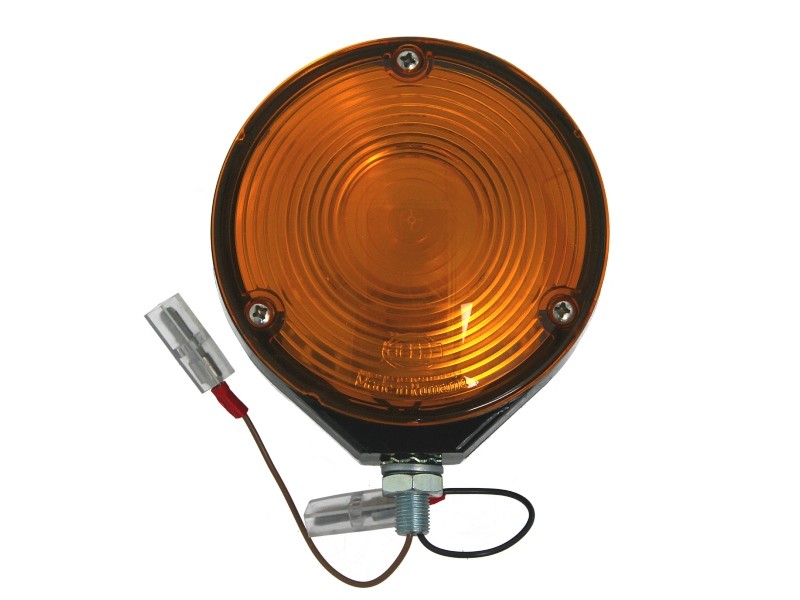

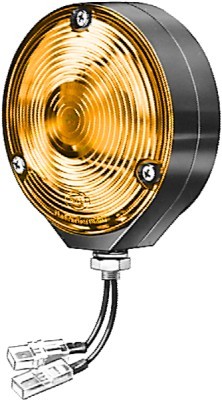

2BA003 022-001 Signal HELLA - HELLA installation kit
Product Description
Mounting position Left
Right
Front / Rear mounting position
Right / Left mounting part
Yellow bottle color
Halogen lamp type
Tip type P21W
With bulb socket Yes
Voltage 12.0 V / 24.0 V
Application from 01.71
Weight 0.20 kg
Inter Cars Code 202369
Product label
Printable label
Details TecDoc
Upright assembly specifications
Rear mounting
Left
right
lateral amount
face
Supplementary Article / Supplementary Info 2 with connection
without incandescent bulbs
Extended article / Extension information with bulb support
ECE approval
Voltage [V] 24.0
12.0
Decoupling height 4 [mm] 170.0
Number of light functions 1.0
Housing color black
Housing type Plastic housing
Cable length [mm] 146.0
P21W lamp type
Halogen lamp construction
Lamp function with signal lights
Yellow lens color
Screw type / tubular screw nut
Plug type Cable slipper with claws
Flat joint shirt
Registration type check type E
